CORE_RK3588_STAMP: Ultra-Compact Industrial-Grade Edge AI Core Board with 8K Power
CORE_RK3588_STAMP
Accelerate Edge Intelligence with Rockchip’s Flagship SoC – Ready for Rugged Deployments
- Smallest RK3588 board for Space-constrained Designs
- LGA+LCC Dual-Encapsulation for harsh environments
- RK3588 Signal 100% Fanout for Flexible Design
- Rugged Connectivity: PCIe3.0×4 + SATA3.0 + RGMII×2
- Production-proven reliability reduces development risks
Description
Product Overview

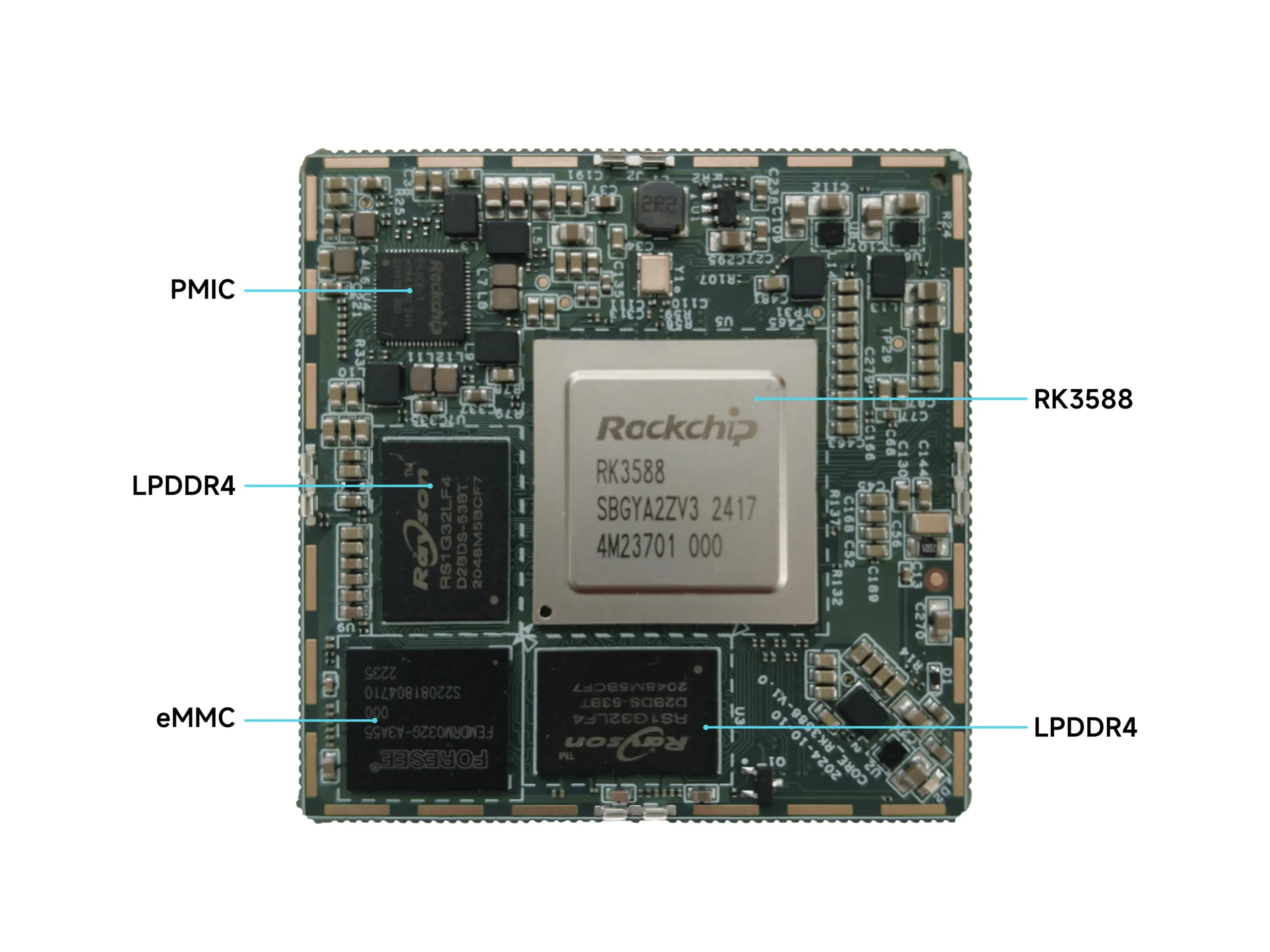

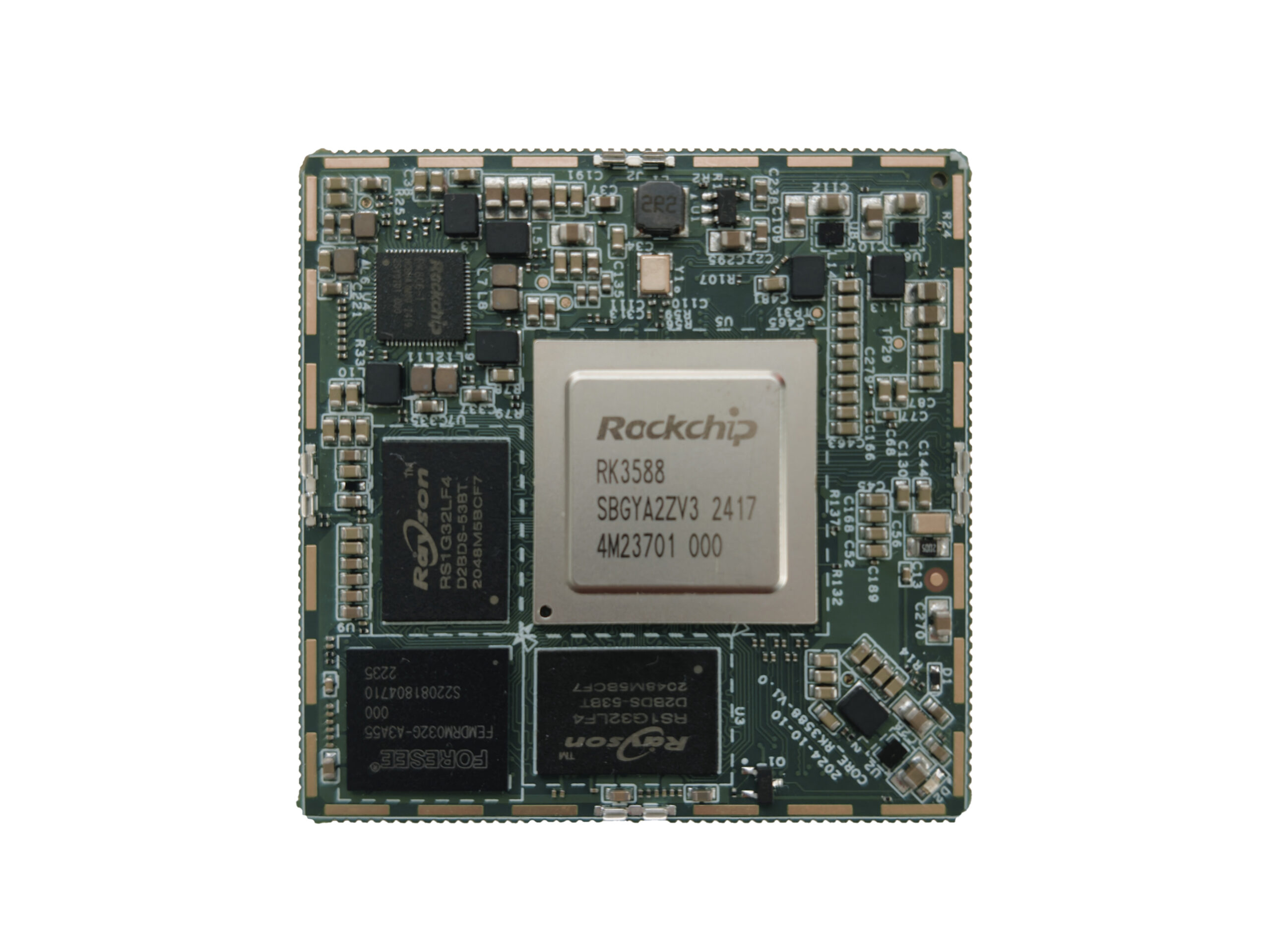

Positioned as an industry-leading edge computing solution, the CORE_RK3588_STAMP integrates Rockchip’s flagship RK3588/RK3588J octa-core SoC (4x Cortex-A76 up to 2.4GHz + 4x Cortex-A55) into an ultra-compact 55×55×4.5mm form factor. Full-pinout access enables versatile hardware expansion. Designed for rugged deployments, it leverages LGA+LCC dual encapsulation for vibration resistance and optional EMI shielding for interference immunity, suitable for harsh environments. Production-proven reliability reduces development risks. We provide comprehensive Support to accelerates time-to-market from schematics to custom carrier board services.
Key Features
1. 55mm² Industrial Miniaturization
- Smallest RK3588 Form Factor (55×55×4.5mm) for space-constrained designs: drones, medical devices, robotics.

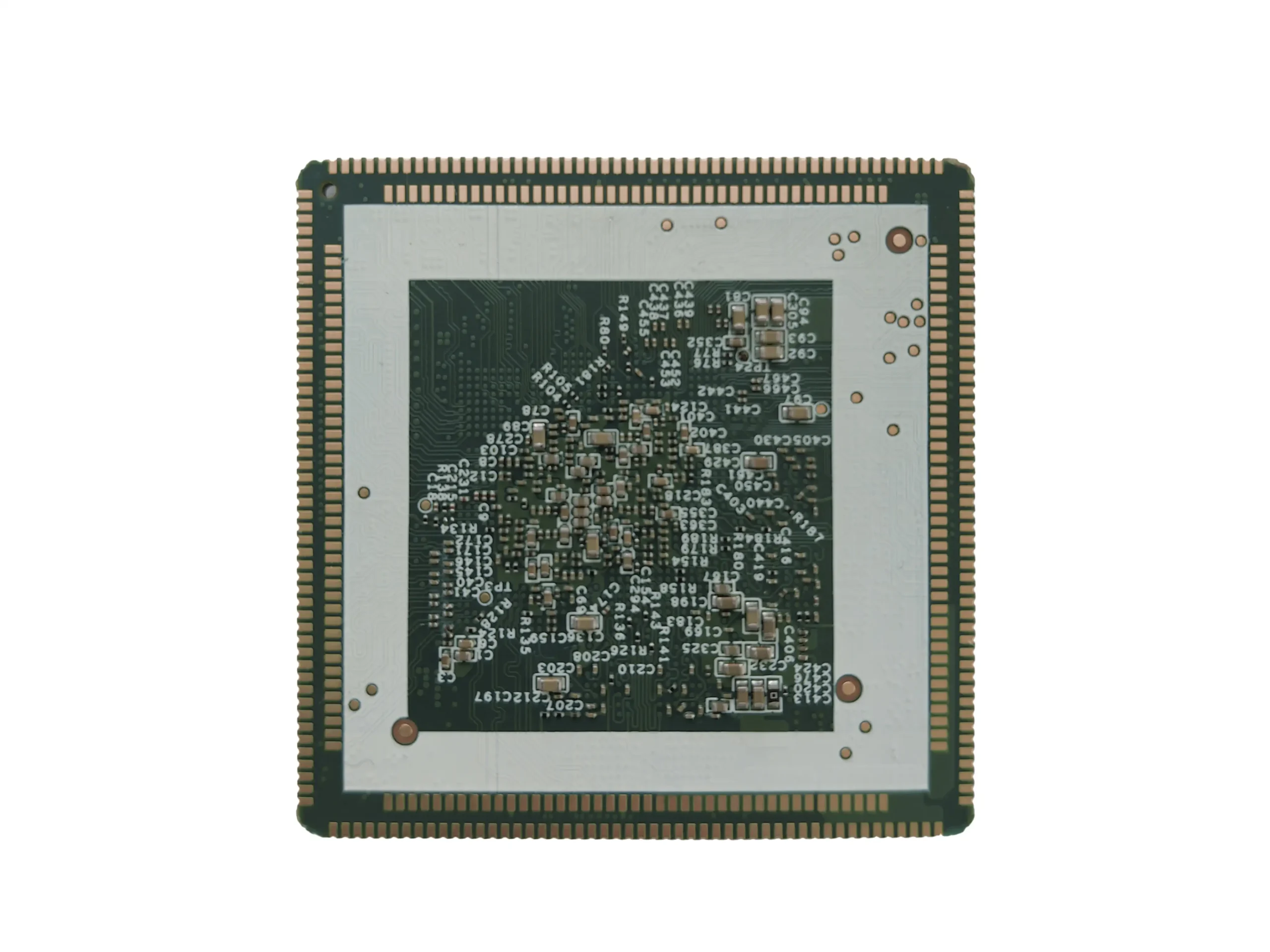

- LGA+LCC Dual-Encapsulation: Vibration-proof, shock-resistant, and ideal for harsh environments.
2. 8K Visual Processing Dominance
- Dual ISP + 8K@60fps H.265 Decode: Handle 48MP cameras @15fps or 32MP @30fps for industrial inspection, autonomous systems.
- Multi-Display Flexibility: Drive 2x HDMI/eDP + DP TX + 2x MIPI DSI simultaneously for control panels, digital signage.
3. 6 TOPS NPU for Edge AI Acceleration
- TensorFlow/PyTorch/Caffe Optimized: Deploy real-time object detection, predictive maintenance, NLP at the edge.
- BF16/FP16/INT4 Support: Maximize efficiency for lightweight models in power-sensitive deployments.
4. Rugged Connectivity Ecosystem
- 4×PCIe3.0×1 + 1×SATA3.0 + 2×RGMII: Seamlessly integrate NVMe SSDs, industrial cameras, and Gigabit networks.
- Shielded Design: Optional EMI cage eliminates signal interference in RF-heavy settings (e.g., factory floors).
5. Zero-Risk Deployment
- Pre-Validated BSPs: Debian 11, Ubuntu 20.04, Buildroot with Linux 5.10. LTS kernel for regulatory compliance.
- Full-Pinout Access: 364-pin LGA/LCC exposes 100% RK3588 signals – no redesigns needed.
Technical Specifications
| CORE_RK3588_STAMP | ||||||||||
| CPU | RK3588/RK3588J; 8nm; 64bit | |||||||||
| 4xARM Cortex-A76 RK3588: 2.4GHz RK3588J: 1.6GHz; Can up to 2.0GHz | ||||||||||
| 4xARM Cortex-A55 RK3588: 1.8GHz RK3588J: 1.3GHz; Can up to 1.7GHz | ||||||||||
| 3xARM Cortex-M0(PMU_M0, NPU_M0, DDR_M0) PMU_M0: 200MHz NPU_M0; DDR_M0 UNOPEN | ||||||||||
| NPU: 6TOPS Support: INT4/ INT8/ INT16/ FP16/ BF16/ TF32 Support: TensorFlow/ PyTorch/ Caffe/ MXNet | ||||||||||
| GPU: Mali-G610 MP4 Support: OpenGL ES 1.1/2.0/3.2; OpenCL 2.2; Vulkan 1.2 | ||||||||||
| ISP: 2xISP(ISP0/ISP1); Support HDR; 3DNR Support Camera: 48M: 8064×6048@15fps dual ISP 32M: 6528×4898@30fps dual ISP 16M: 4672×3504@30fps single ISP | ||||||||||
| Decoder: 8K@60fps H.265, 8K@30fps H.264 | ||||||||||
| Encoder: 8K@30fps H.265/H.264 | ||||||||||
| ROM | 32/64/128GByte eMMC | |||||||||
| RAM | 4/8/16GByte LPDDR4/LPDDR4X | |||||||||
| Video IN | 2xMIPI CSI (DCPHY) | |||||||||
| 2xMIPI CSI (DPHY) | ||||||||||
| 1xHDMI IN | ||||||||||
| Video OUT | 2xHDMI/eDP OUT | |||||||||
| 1xDP TX | ||||||||||
| 2xMIPI DSI (DCPHY) | ||||||||||
| PCIe | 1xPCIe 3.0×4/4x PCIe 3.0×1 | |||||||||
| 1xPCIe 2.1×1 | ||||||||||
| GMAC | 2x; RMII/RGMII PHY | |||||||||
| USB | 1xType-C | |||||||||
| 1xUSB3.1 | ||||||||||
| 2xUSB2.0 | ||||||||||
| SATA | 1xSATA3.0 | |||||||||
| I2S | x1 | |||||||||
| I2C | x6 | |||||||||
| UART | x5 | |||||||||
| CAN | x2 | |||||||||
| SPI | x1 | |||||||||
| GPIO | x20 | |||||||||
| SARADC | x5 | |||||||||
| LED | 1x; System State Index | |||||||||

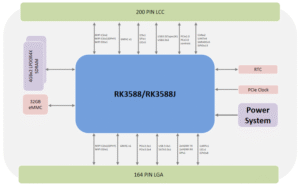

| INTERFACE | 4x50PIN(LCC; 1.0mm) + 4x41PIN(LGA; 1.0mm); 364PIN | |||||||||
| POWER | 4.0V±5% Stable Power Input | |||||||||
| SIZE | 55*55*4.5mm (2.16×2.16×0.18in) | |||||||||
| Software | Debian 11 (Linux-5.10.160) | |||||||||
| Buildroot-2021.11 (Linux-5.10.160) | ||||||||||
| Ubuntu20.04 (Linux-5.10.160 XFCE) | ||||||||||
| Qt-5.15.10 | ||||||||||
| Required lib and drive | ||||||||||
Application Scenarios
Power Substation
Primary protection & control master | Remote SCADA & communications gateway | High-precision fault recorder
Renewables & Energy Storage
PV/wind farm inverter monitoring & central controller | BMS + EMS edge controller for battery storage systems
Intelligent Transportation & V2X
Roadside edge compute controller for real-time video & sensor fusion | Traffic-flow analytics & ANPR unit with edge AI inference
Configuration Options
1. Processor: RK3588 → RK3588J (industrial grade chip)
2. Memory: 8GB → 16GB/32GB LPDDR4/LPDDR4X
3. Storage: 32GB → 64GB/128GB eMMC
Why Choose Us？
- Free Reference Schematics (PDF) + Custom Baseboard Design Services.
- Core Customization: Scale memory, optimize I/O, or white-label firmware.
- Qt 5.15.10 Pre-Compiled: Rapid GUI development for HMI/control panels.
- Certification Ready: Pre-tested for FCC/CE EMI compliance (with shield). RoHS-compliant assembly.
Additional information
| CPU | 4xARM Cortex-A76+ 4xARM Cortex-A55+ 3xARM Cortex-M0 (PMU_M0, NPU_M0, DDR_M0) |
|---|---|
| GPU | Mali-G610 MP4 |
| NPU | 6 TOPS |
| Video Interfaces | 2xMIPI CSI(DCPHY) 2xMIPI CSI(DPHY) 1xHDMI IN 2xHDMI/eDP OUT 1xDP TX 2xMIPI DSI(DCPHY) I2Sx1 |
| Data Interfaces | 1xPCIe 3.0×4/4x PCIe 3.0×1, 1xPCIe 2.1×1, 2x RMII/RGMII PHY, 1xType-C, 1xUSB3.1, 2xUSB2.0, 1xSATA3.0 |
| I/O Interfaces | I2C x6, UART x5, CAN x2, SPI x1, GPIO x20, SARADC x5, |
| Mechanical Dimension | 55*55*4.5mm |
| Operating Temperature | 2 options: 0~70°C and -40~+85°C |
