CORE-RK3568-LP32: 55×55×3.1mm Industrial Core Board with 1TOPS NPU & Dual PCIe 3.0
CORE-RK3568-LP32
Industrial Grade | LCC/LGA Hybrid Package | Full Signal Fan-out | -40°C to 85°C
- Industrial Grade | LCC/LGA Hybrid Package | Full Signal Fan-out | -40°C to 85°C
- LGA+LCC packaging ensures superior vibration resistance
- EMI shield bracket planned for interference protection
- Full RK3568J fan-out delivers versatile I/O mapping
- Low-power design suits battery-powered edge applications
Description
Product Overview

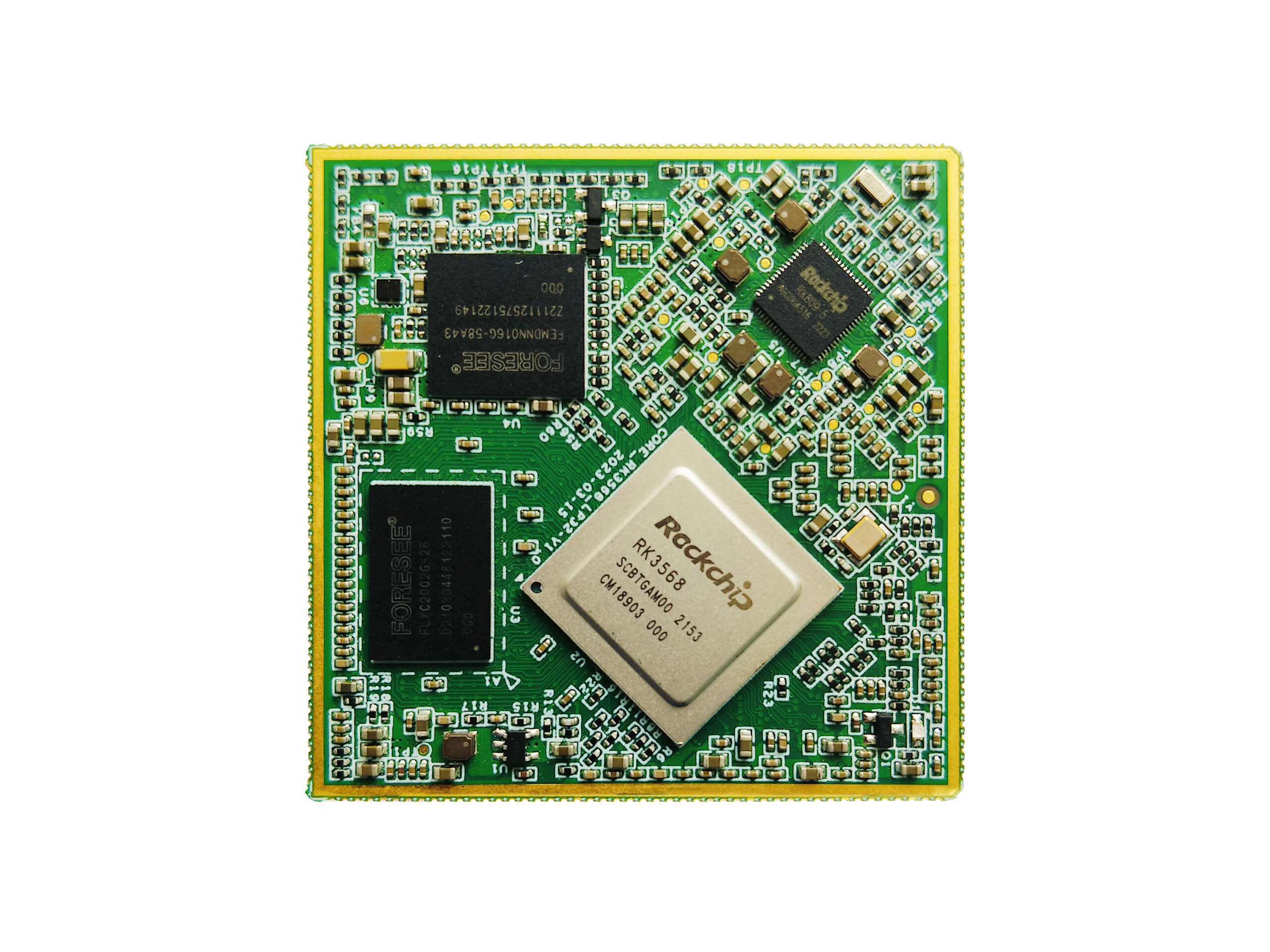

CORE_RK3568_LP32 is a 55×55×3.1mm industrial module powered by the RK3568J SoC, integrates quad Cortex-A55 (up to 2.0GHz), 1TOPS NPU, and Mali-G52 GPU in single-sided SMT layout. It combines full I/O fan-out, low-power operation, and rugged packaging for rapid integration in edge AI, industrial automation, and embedded vision applications.
Key Features
1. Compact Reliability
- Use 0402 components to balance board density and long-term stability.
2. Industrial Resilience
- Hybrid LCC(1.1mm)/LGA(2.0mm) packaging passes 20Grms vibration; -40°C cold-start operation.
3. Design Flexibility
- 272-pin full fan-out enables dual PCIe 3.0, 2xGMAC, and 8xUART without compromises.
4. Risk-Free Deployment
- Linux 5.10 LTS BSP + turnkey design services accelerate deployment to 6 weeks.
5. Customization Supported
- Hardware: Core board customization (pin-compatible upgrade). Software: Debian/Ubuntu BSP pre-adaptation.
6. Ideal Applications
- Pre-validated Linux 5.10 LTS BSP with Qt 5.15 certification reduces bring-up to ≤8 weeks.
Technical Specifications
| CORE_RK3568_LP32 | ||||||||||
| CPU | RK3568/RK3568J; 64bit; 22nm | |||||||||
| 4x ARM Cortex-A55 RK3568 : 2.0GHz RK3568J: 1.6GHz; CAN UP TO 2.0GHz | ||||||||||
| 1xRISC-V: 150MHz | ||||||||||
| NPU: 1TOPS Support: INT8/INT16/FP16/BFP16 Support: TensorFlow/PyTorch/Caffe/MXNet | ||||||||||
| GPU: Mali-G52-2EE Support: OpenGL ES 1.1/2.0/3.2; OpenCL 2.0; Vulkan 1.0/1.1 | ||||||||||
| ISP: 8M; Support HDR | ||||||||||
| Decoder: 4K@60fps H.265/H.264 | ||||||||||
| Encoder: 1080P@60fps H.265/H.264 | ||||||||||
| ROM | 8/16/32GByte eMMC | |||||||||
| RAM | 1/2/4GByte LPDDR4/LPDDR4X | |||||||||
| VIDEO IN | 1xMIPI CSI; 4 data lane; Support 2X2 lane or 1X4 lane | |||||||||
| VIDEO OUT | 1xHDMI OUT | |||||||||
| 1xEDP | ||||||||||
| 2xLVDS/MIPI DSI | ||||||||||
| AUDIO | 1xMIC | |||||||||
| 1xSPK; 2xHP | ||||||||||
| PCIe | 1xPCIe 3.0×2 | |||||||||
| 1xPCIe 2.0×1 | ||||||||||
| GMAC | 2x; RMII/RGMII PHY | |||||||||
| USB | 2xUSB3.0 | |||||||||
| 2xUSB2.0 | ||||||||||
| SD | x2 | |||||||||
| I2S | x1 | |||||||||
| I2C | x4 | |||||||||
| UART | x8 | |||||||||
| CAN | x2 | |||||||||
| GPIO | x35 | |||||||||
| SARADC | x3 | |||||||||
| LED | 1x; System state index | |||||||||

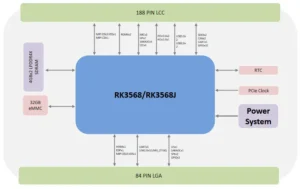

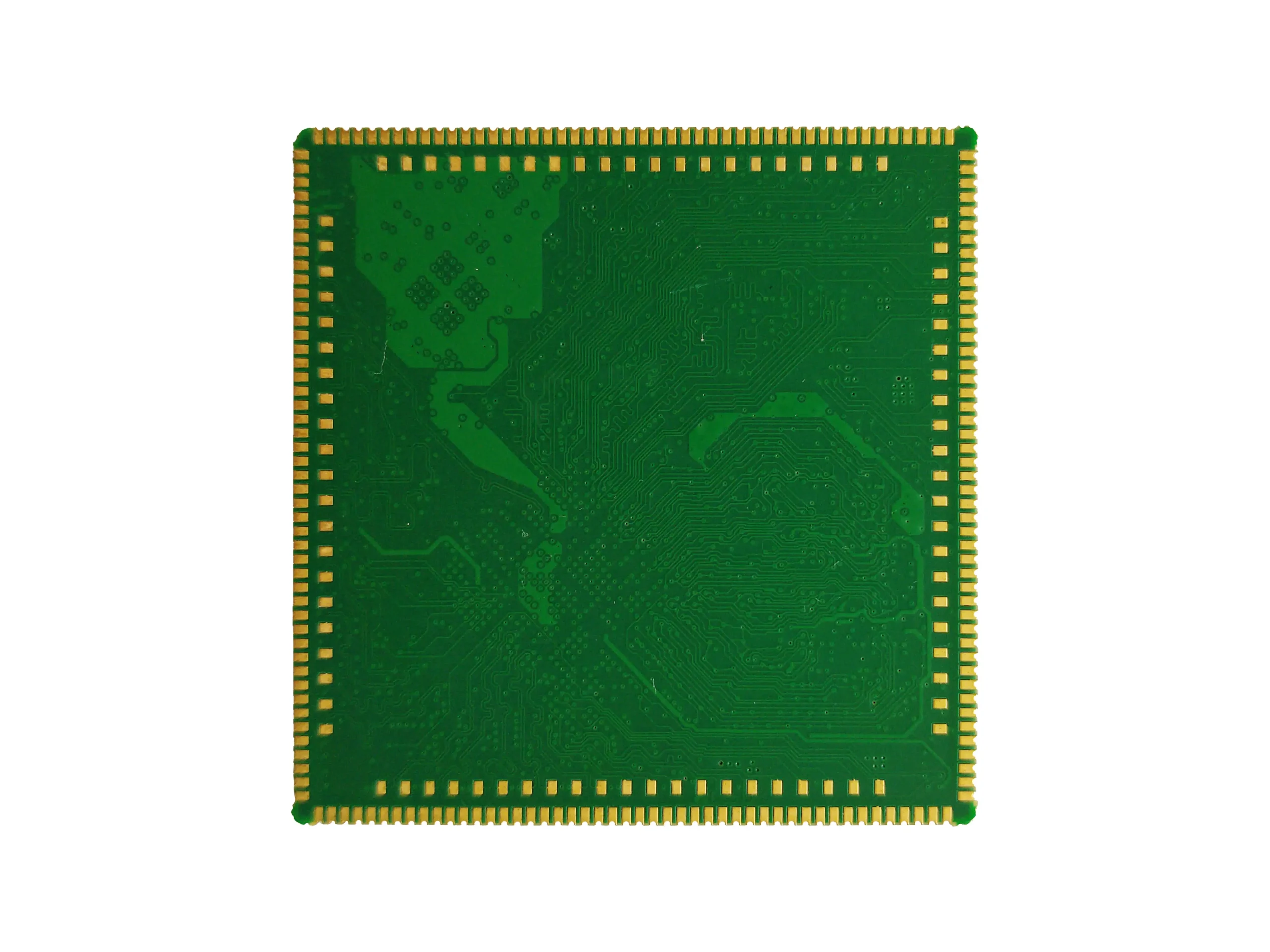

| INTERFACE | 4x47PIN(LCC; 1.1mm) + 4x21PIN(LGA; 2.0mm); 272PIN | |||||||||
| POWER | 3.3V±5% | |||||||||
| SIZE | 55*55*3.1MM | |||||||||
| SOFTWARE | Debian-11 (Linux-5.10.198) | |||||||||
| Buildroot-2021.11 (Linux-5.10.198) | ||||||||||
| Ubuntu20.04 (Linux-5.10.198 XFCE) | ||||||||||
| Qt-5.15.10 | ||||||||||
| Required lib and drive | ||||||||||
Application Scenarios
Wearable medical devices, robotic controllers, and defense systems requiring compute density under extreme conditions.
Configuration Options
1. Processor: RK3568 → RK3568J (industrial grade chip)
2. Memory: 4GB → 8GB/16GB LPDDR4/LPDDR4X
3. Storage: 1GB → 2GB/4GB eMMC
Why Choose Us？
- One-stop turnkey solution: From PCB design to PCBA mass production.
- Core Customization: Scale memory, optimize I/O, or white-label firmware.
- Qt 5.15.10 Pre-Compiled: Rapid GUI development for HMI/control panels.
- Certification Ready: Pre-tested for FCC/CE EMI compliance (with shield). RoHS-compliant assembly.
Additional information
| CPU | 4xARM Cortex-A55 |
|---|---|
| GPU | Mali-G52-2EE |
| NPU | 1 TOPS |
| Video Interfaces | 1xMIPI CSI, 4 DATA LANE, SUPPORT 2X2 LANE OR 1X4 LANE, 1xHDMI OUT, 1xEDP, 2xLVDS/MIPI DSI, 1xMIC, 1xSPK, 2xHP, I2S X1 |
| Data Interfaces | 1xPCIe 3.0×2, 1xPCIe 2.0×1, 2x RMII/RGMII PHY, 2xUSB3.0, 2xUSB2.0, SD x2 |
| I/O Interfaces | I2C x4, UART x8, GPIO x35, SARADC x3, CAN x2 |
| Mechanical Dimension | 55*55*3.1mm |
| Operating Temperature | 2 options: 0~70°C and -40~+85°C |
