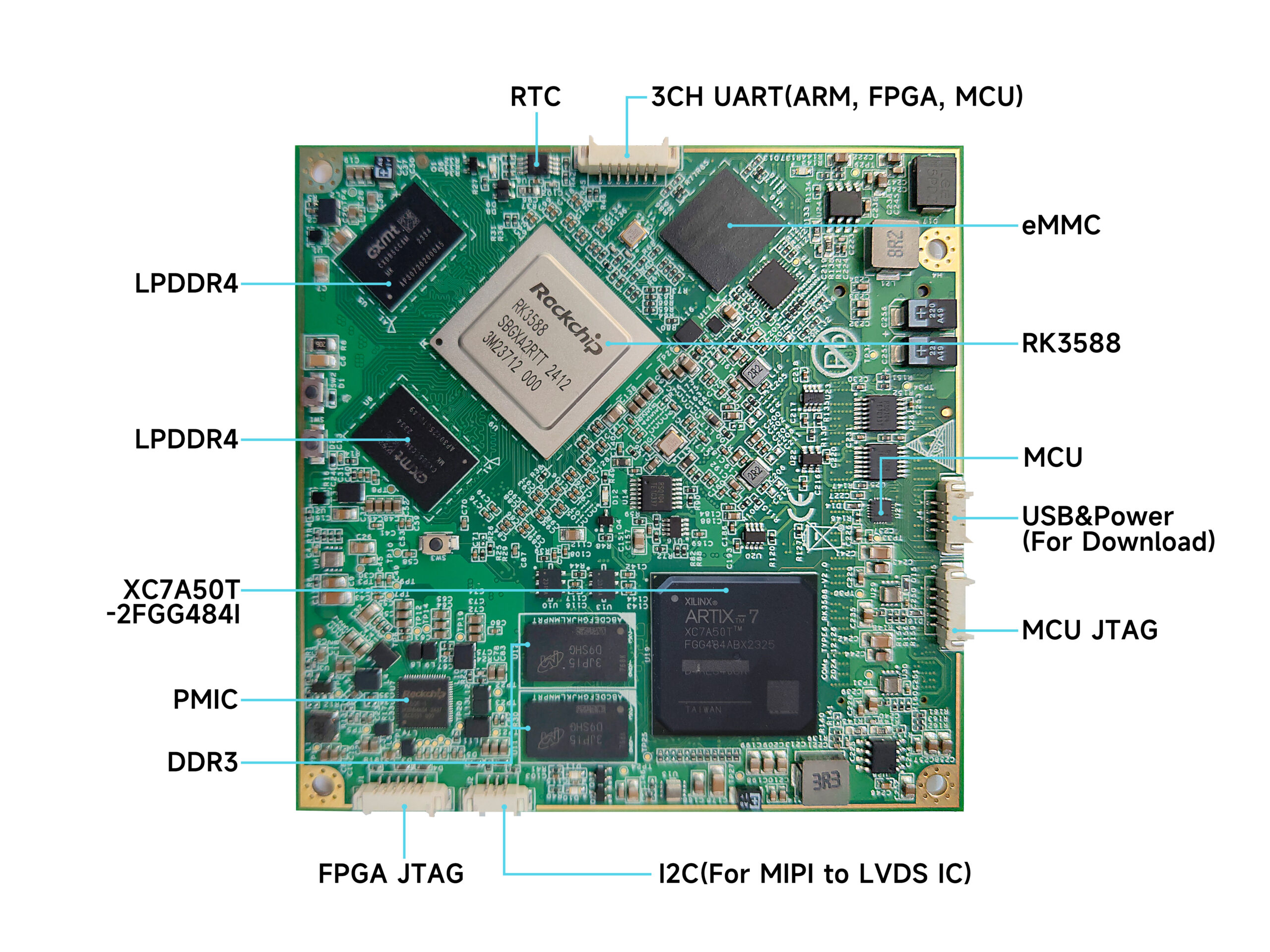

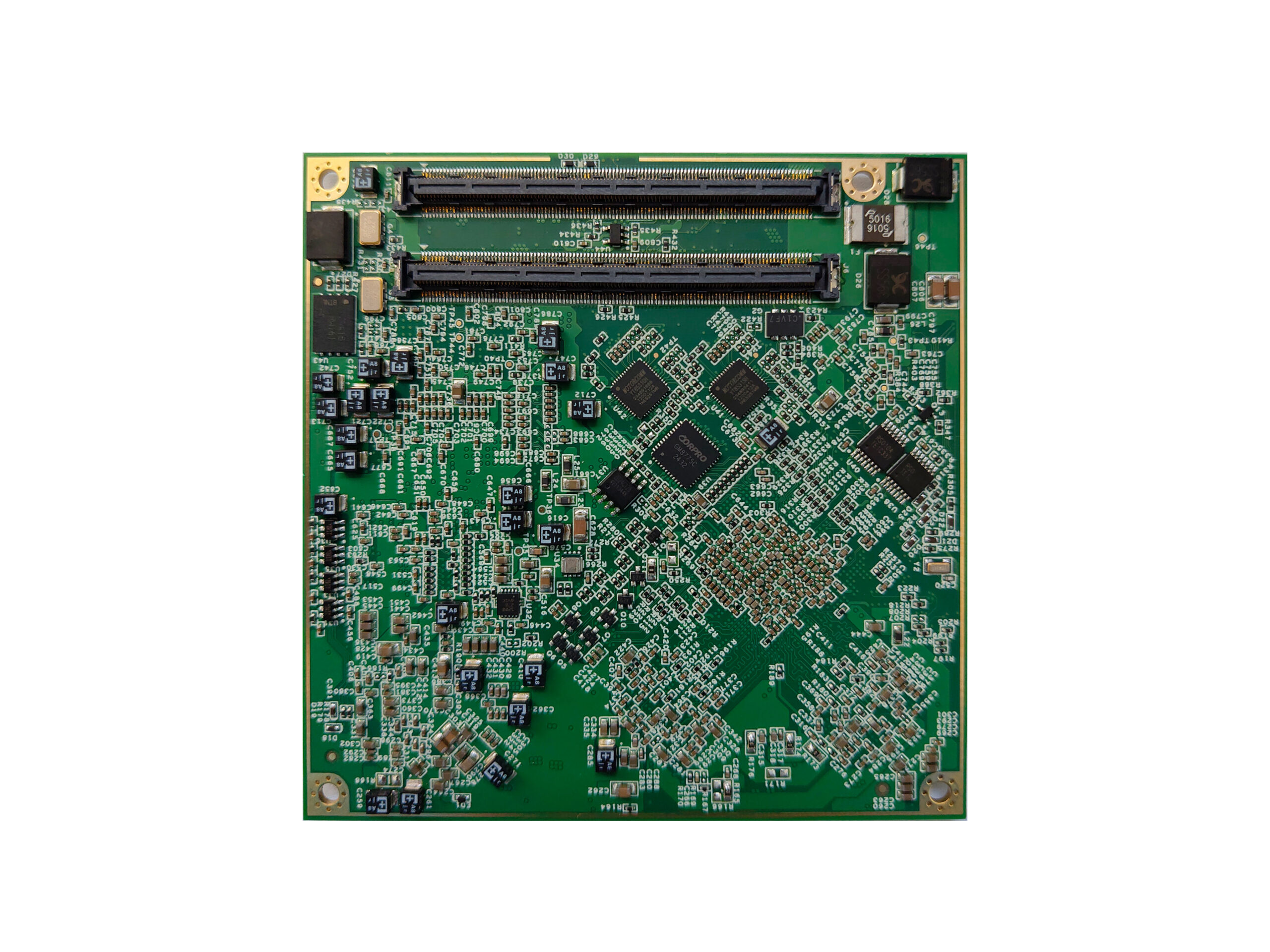

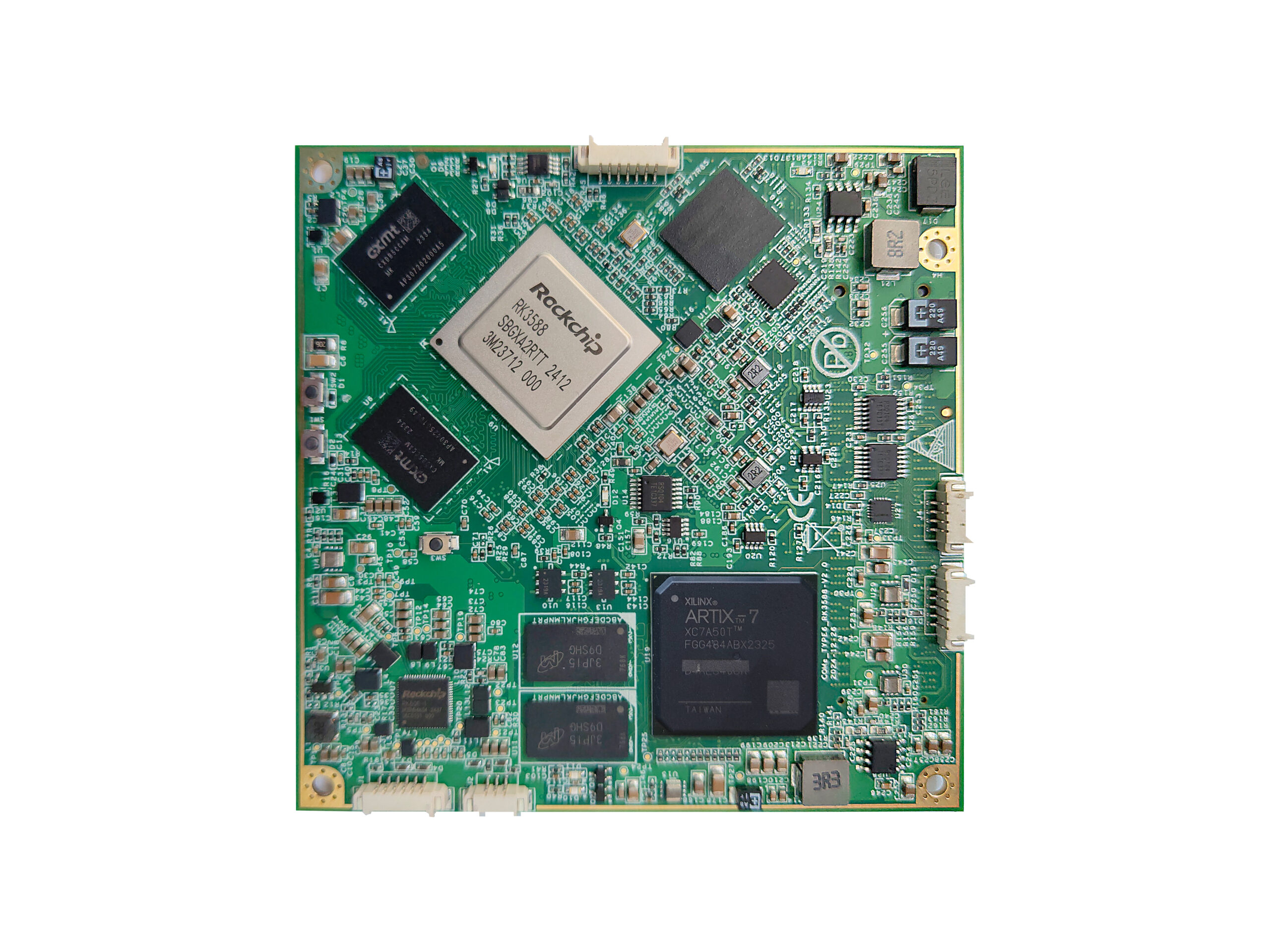

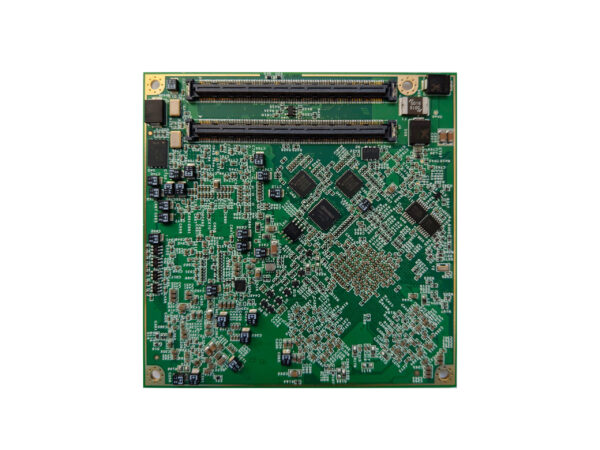

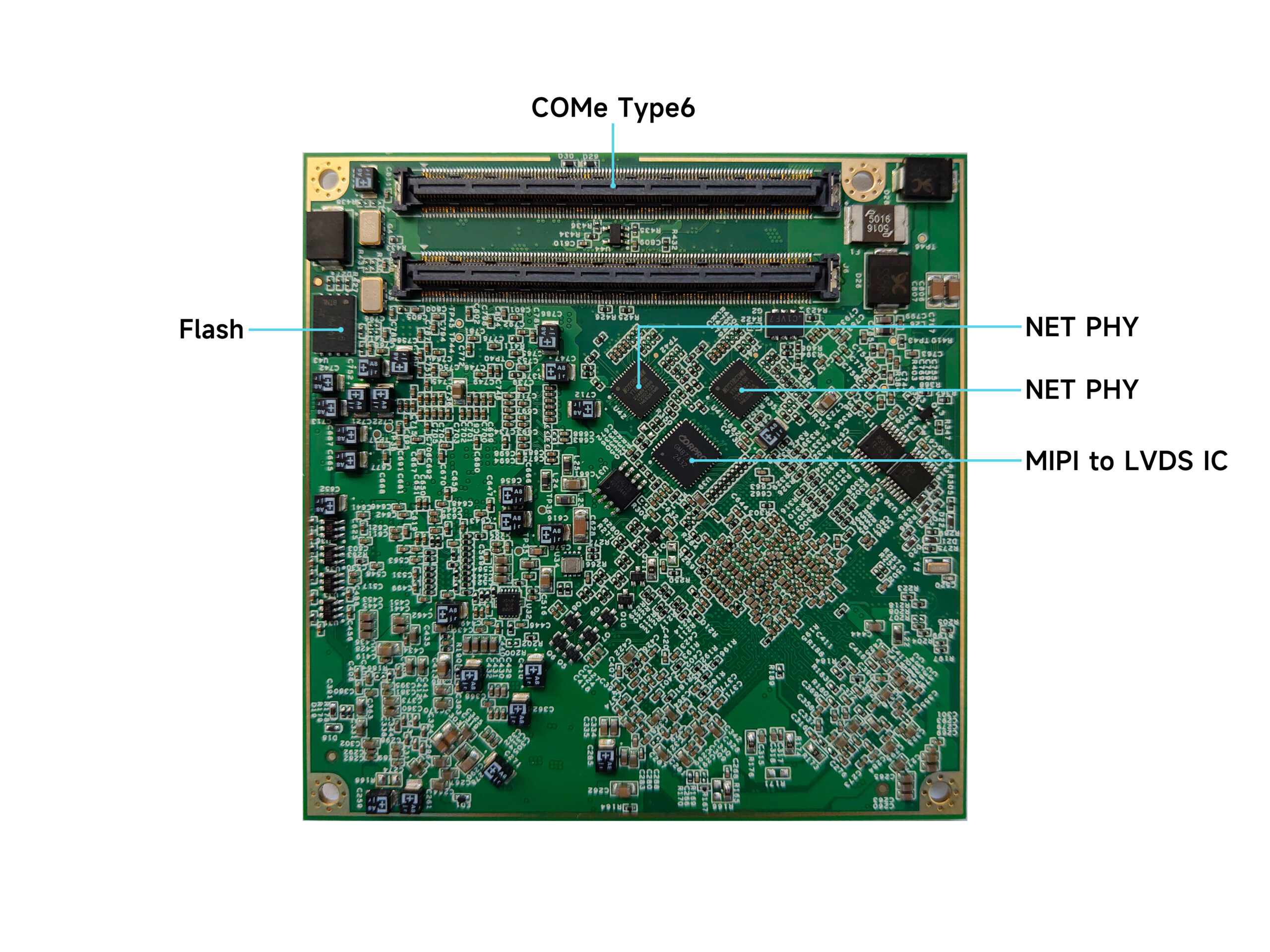

COMe_TYPE6_RK3588
Additional information
| CPU | 4xARM Cortex-A76+ 4xARM Cortex-A55+ 3xARM Cortex-M0 (PMU_M0, NPU_M0, DDR_M0) |
|---|---|
| GPU | Mali-G610 MP4 |
| NPU | 6 TOPS |
| Video Interfaces | 1xMIPI CSI(DPHY), 1xHDMI IN, 1xMIPI DSI(DCPHY 4LANE), 1xLVDS(MIPI TO LVDS), 1xHDMI OUT, 1xDP I2S x1, FPGA support flexible customization |
| Data Interfaces | 1xPCIe 3.0×4/4xPCIe 3.0×1, 1xPCIe 2.1×1, 1xType-C(USB3.0), 1xUSB3.0, 2xUSB2.0, SARADCx3, GBEx2, 1xSATA3.0, FPGA support flexible customization |
| I/O Interfaces | I2C x2, UART x2, SPI x1, GPIO x5, SARADC x3, |
| Mechanical Dimension | 95*95*8.1mm |
| Operating Temperature | 2 options: 0~70°C and -40~+85°C |
